How Jet Engines Work: The Basics of Turbine Power Explained

Understand how jet engines produce thrust, core turbine components, and what pilots need to know for operation, training, and safety. A clear primer on jet engines for aviators.

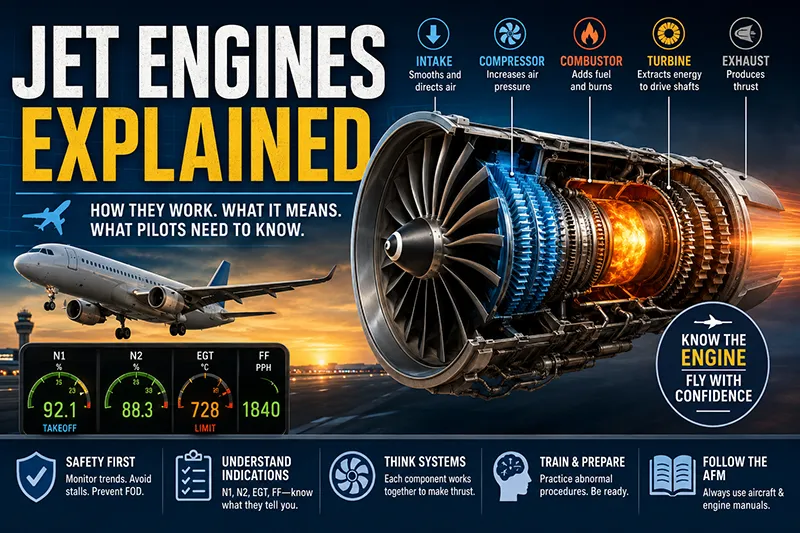

Cutaway view of a turbofan jet engine showing compressor, combustion chamber, turbine stages, and bypass fan on an airliner installation
Cutaway of a turbofan engine showing core compressor, combustion chamber, turbine stages, and bypass fan. Useful for explaining thrust production and efficiency.

Jet engines are the heart of modern air transport and turbine-powered business aircraft. For pilots, instructors, and maintenance-minded aviators, understanding how jet engines produce thrust and how their core components interact improves operational judgment, troubleshooting, and safety. This article explains core turbine-engine concepts in clear aviation language and links those concepts to training and operational practice.

We begin with the basic physical principle behind most gas turbine engines, then review the major components and terminology pilots will encounter in aircraft operating handbooks, engine indications, and training syllabi. Along the way youll find practical examples and safety-focused explanations that help translate theory into better in-flight and ground decision-making.

How a Jet Engine Produces Thrust

At its simplest, a jet engine accelerates a mass of air rearward, and the reaction produces forward thrust. The thermodynamic process that makes this possible in gas turbines is known as the Brayton cycle: air is compressed, fuel is added and burned, and the high-energy exhaust expands through turbine stages and a nozzle. The turbine extracts just enough energy from the hot gases to drive the compressor and, in the case of turbofans, the fan. The remaining energy is expelled to produce thrust.

Jet engines are commonly grouped by configuration. Turbojets compress and accelerate nearly all intake air through the core. Turbofans split the intake flow between a bypass stream and the core; most modern airliners use high-bypass turbofans because they are more efficient and quieter at subsonic speeds.

Main Components and What They Do

Understanding the major engine sections helps pilots interpret engine instruments and communicate with maintenance when something unusual appears.

Intake/inlet: smooths and directs incoming air into the fan or compressor. On multi-engine airplanes, intake design affects susceptibility to foreign object ingestion.

Fan: a large, forward-mounted stage on turbofans that accelerates a large mass of air. The fan produces a significant portion of thrust in turbofan engines through the bypass flow.

Compressor: typically an axial-flow multi-stage assembly that raises air pressure before combustion. Compressors are arranged as rotating blades (rotors) and stationary guide vanes (stators). Some small turboprops and auxiliary power units use centrifugal compressors instead.

Combustor (combustion chamber): fuel is introduced into the compressed air and ignited. The combustion process increases gas temperature and energy while pressure remains relatively constant through this stage.

Turbine: one or more stages of rotor and stator blades that extract energy from hot gases to drive the compressor and, on some designs, the fan or shaft accessories. Turbine blades operate in extreme temperature environments and rely on careful cooling and material design.

Nozzle/exhaust: converts high-pressure gas energy into high-velocity jet flow to produce thrust. Some engines use a convergent or convergent-divergent nozzle for specific performance requirements.

Accessory gearbox and control systems: provide power to start the engine, drive pumps and generators, and, on modern engines, interface with the electronic control system such as FADEC (Full Authority Digital Engine Control).

Why This Matters in Real-World Aviation

Knowing what each component does and how they interact matters in everyday flying. Engine behavior governs takeoff performance, climb capability, fuel planning, and emergency procedures. Interpreting engine instruments correctly lets pilots detect degrading performance, avoid exceedances, and communicate accurate information to maintenance and air traffic control.

For example, understanding bypass ratio helps pilots conceptualize thrust production in turbofan aircraft: most thrust at normal cruise comes from the fan and bypass flow, not just the hot core. That explains why a modern airliner can continue to generate substantial thrust with relatively modest core exhaust velocity compared with older turbojets.

From a safety perspective, common operational risks include foreign object damage during ground operations, compressor stalls during abrupt throttle changes, and thermal stresses during starts and shutdowns. Training that links instrument readouts to likely mechanical causes improves decision-making under time pressure.

How Pilots Should Understand Engine Instruments and Behavior

Pilots rarely need to know the exact engineering details of blade cooling or metallurgy, but they must understand what the instruments indicate and what to do when parameters change. Key engine instruments typically include N1 or Np (fan or low-pressure spool speed), N2 or Ng (core or high-pressure spool), exhaust gas temperature (EGT), fuel flow, and torque or thrust indications on turboprops.

Recognize relationships among parameters: a steady increase in EGT with little change in N1 during a climb trend can indicate an air bleed issue or reduced compressor efficiency. An unexpected drop in N1 accompanied by rising EGT may signal a compressor surge or fuel control problem. Exact meanings and limits vary by engine model, so consult the aircraft flight manual and engine manufacturer guidance for definitive interpretations and limits.

Common Mistakes or Misunderstandings

Pilots and students often make a few predictable errors when learning turbine engine behavior:

  • Equating propeller "power" and throttle response with jet "thrust" response. Jets have slower transient response and spool inertia; power changes are not instantaneous.
  • Assuming engine instruments share the same names and meanings across aircraft. Terms like N1, N2, EPR, and EGT are common, but their specific roles and scale require aircraft-specific familiarization.
  • Mishandling of abrupt throttle movements at low airspeeds or high-power settings, which can provoke compressor stalls or surges if the airflow through the compressor is disturbed.
  • Underestimating foreign object ingestion risk during taxi or takeoff roll. Small debris can seriously damage fan and compressor blades.

Practical Example

Consider a multi-engine turbofan takeoff scenario. During the takeoff roll the pilot advances thrust levers to the takeoff detent, monitoring N1, EGT, and engine instruments. If an engine experiences a sudden loss of N1 and a corresponding rise in EGT and vibration, the likely immediate response is to reject the takeoff if below decision speed and runway remaining allows. If above V1 or unable to stop safely, the pilot follows the engine failure after V1 procedure, secures the failed engine, and configures the aircraft for climb on remaining thrust.

This example highlights why pilots need to know which instruments indicate core speed versus fan speed, how EGT trends reflect combustion health, and why time-critical decisions such as reject/continue rely on prebriefed speeds and checklist actions found in the AFM and company procedures.

Best Practices for Pilots

Practical habits reduce risk and improve engine reliability in operations:

  • Follow the aircraft flight manual and engine manufacturer procedures for starts, takeoff, and shutdown. Those documents contain model-specific limits and procedures that should not be substituted with generic rules.
  • Monitor engine trends rather than single snapshots. Trending instruments over several minutes helps detect gradual degradation that might not trigger immediate alarms.
  • Use smooth, planned power changes during flight training to avoid abrupt disturbances that can cause compressor stalls, particularly during low-speed, high-angle-of-attack conditions.
  • Practice engine-failure and abnormal-procedure drills in the simulator to internalize the cues and memory items without relying solely on procedural checklists under stress.
  • Ensure preflight inspection and ramp discipline to reduce foreign object ingestion risk; coordinate with ground crews before operations in debris-prone environments.

Frequently Asked Questions

What is the difference between a turbofan and a turbojet?

A turbofan directs part of the intake airflow around the engine core through a bypass duct while the remainder passes through the core. The fan and bypass flow produce a large portion of thrust in turbofans, especially at subsonic speeds. Turbojets route most air through the core and rely primarily on high-velocity exhaust for thrust. Turbofans are generally more fuel-efficient and quieter for subsonic transport.

What causes a compressor stall and how do pilots recognize it?

Compressor stalls occur when airflow through the compressor becomes disrupted and blades temporarily lose stable aerodynamic loading. Pilots may see sudden drops in N1 or N2, spikes in EGT, engine vibration, and possibly surging noise. Stall recovery depends on the aircraft and engine; modern engines and FADEC-equipped systems include protections, but abrupt throttle movements at low airspeeds increase stall risk.

How does FADEC change engine operation for pilots?

FADEC is an electronic control system that manages fuel flow, ignition, and other engine parameters. For pilots, FADEC simplifies engine management by automating many adjustments and protecting certain limits. FADEC does not eliminate the need to understand engine indications and emergency procedures; pilots must still follow aircraft-specific procedures when FADEC alerts or failures occur.

How should pilots use engine indications during abnormal operations?

Use indications to identify the nature of the abnormality and guide appropriate checklist actions. Prioritize memory items and safety-critical steps, then use instrument trends to inform subsequent decisions and communications with ATC and maintenance. Always cross-check instruments against performance expectations and the AFM guidance.

Key Takeaways

  • Practical takeaway: Jet engines produce thrust by compressing air, burning fuel, and expelling high-velocity gases; turbofans add bypass flow for efficiency.
  • Safety takeaway: Monitor instrument trends and avoid abrupt throttle movements that can provoke compressor stalls, and reduce foreign object ingestion risk through careful ramp discipline.
  • Training/regulatory takeaway: Rely on the aircraft flight manual and engine manufacturer guidance for limits and procedures; practice engine failure and abnormal procedures in the simulator.

Understanding the fundamentals of turbine engines helps pilots make better operational decisions, improves communication with maintenance, and enhances safety margins during abnormal events. For any specific aircraft, always use the AFM, engine manuals, and company procedures as the authoritative sources for limits and required actions.
