Appendix B: Key Weight and Balance Locations on an Aircraft

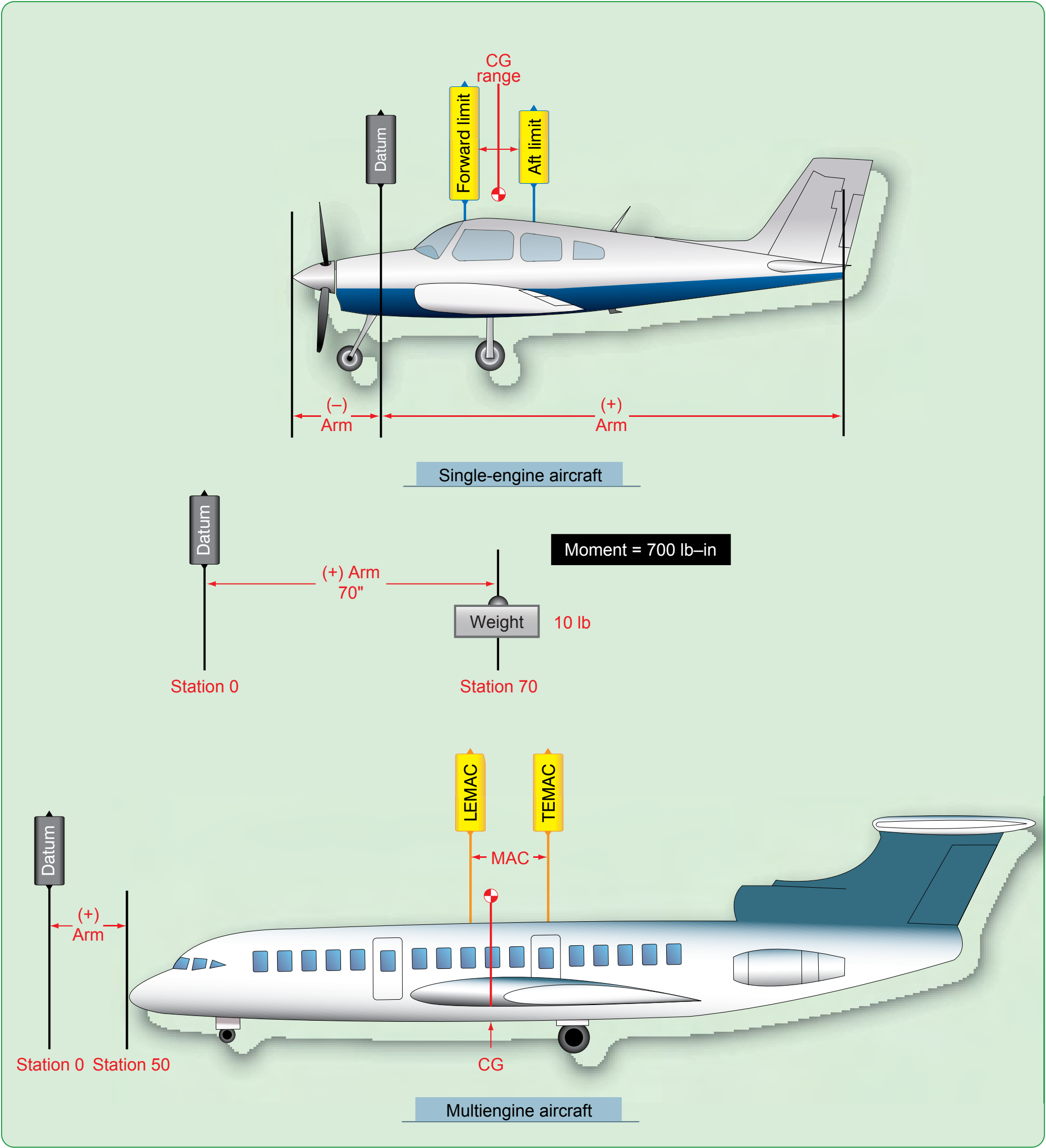

Appendix B diagram showing datum, positive and negative arms, center-of-gravity range, LEMAC, TEMAC, and mean aerodynamic chord on single-engine and multiengine aircraft.
Key weight and balance locations on an aircraft.
