Chapter 3

Mathematics in Aviation Maintenance

22.392

Formula: Therefore, the second resistor, R2 = 22.392 ohms.

Multiplication of Decimal Numbers

To multiply decimal numbers, vertical alignment of the decimal point is not required. Instead, align the numbers to the right in the same way that whole numbers are multiplied (with no regard to the decimal points or place values) and then multiply. The last step is to place the decimal point in the correct place in the answer. To do this, count the number of decimal places in each of the numbers, add the total, and then assign that number of decimal places to the result.

Formula: Example: To multiply 0.2 × 6.03, arrange the numbers

vertically and align them to the right. Multiply the numbers, ignoring the decimal points for now.

6.03 × 0.2

1206 (ignore the decimal points, for now)

After multiplying the numbers, count the total number of decimal places in both numbers. For this example, 6.03 has 2 decimal places and 0.2 has 1 decimal place. Together there are a total of 3 decimal places. The decimal point for the answer is placed 3 decimal places from the right. Therefore, i × 0.2 1 decimal place I i 1.206 3 decimal places

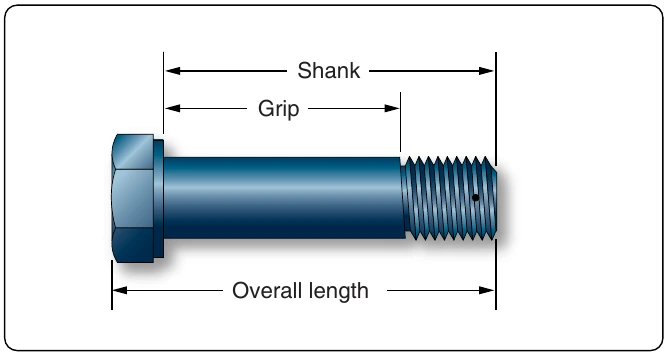

Figure 3-3. Bolt dimensions.
Figure 3-3. Bolt dimensions.

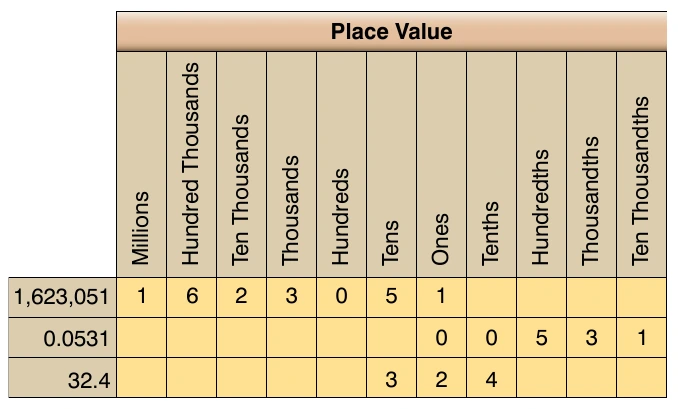

Figure 3-4. Place values.
Figure 3-4. Place values.
Formula: Example: Using the formula watts = amperes × voltage, what ; is the wattage of an electric drill that uses 9.45 amperes from a

120-volt source? Align the numbers to the right and multiply.

After multiplying the numbers, count the total number of decimal places in both numbers. For this example, 9.45 has 2 decimal places and 120 has no decimal place. Together there are 2 decimal places. The decimal point for the answer is placed 2 decimal places from the right. Therefore, the answer is 1,134.00 watts, or simplified to 1,134 watts.

i 9.45 2 decimal places i × 120 no decimal place

000 1890 + 945

i 1,134.00 2 decimal places

Figure 3-5. Circuit diagram.
Figure 3-5. Circuit diagram.

Division of Decimal Numbers

Division of decimal numbers is performed the same way as whole numbers, unless the divisor is a decimal.
