Rotorcraft Flying Handbook (Gyrocopter Use Only)

FAA-H-9093-21 Version 2000

Chapter 1

Introduction to the Helicopter

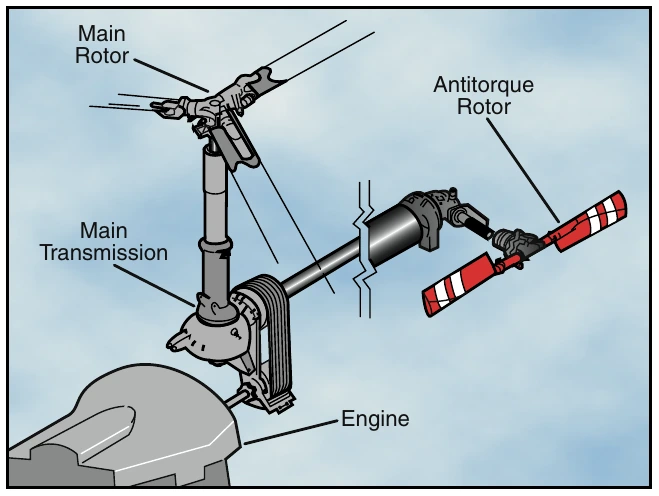

Figure 1-6. Typically, the engine drives the main rotor through a transmission and belt drive or centrifugal clutch system. The antitorque rotor is driven from the transmission.
Figure 1-6. Typically, the engine drives the main rotor through a transmission and belt drive or centrifugal clutch system. The antitorque rotor is driven from the transmission.

Flight Controls

When you begin flying a helicopter, you will use four basic flight controls. They are the cyclic pitch control; the collective pitch control; the throttle, which is usually a twist grip control located on the end of the collective lever; and the antitorque pedals. The collective and cyclic controls the pitch of the main rotor blades. The function of these controls will be explained in detail in Chapter 4—Flight Controls. [Figure 1-7]
