Parachute Rigger Handbook

FAA-H-8083-17A Version 2015 (Change 1)
All Library Documents

Chapter 3

Materials

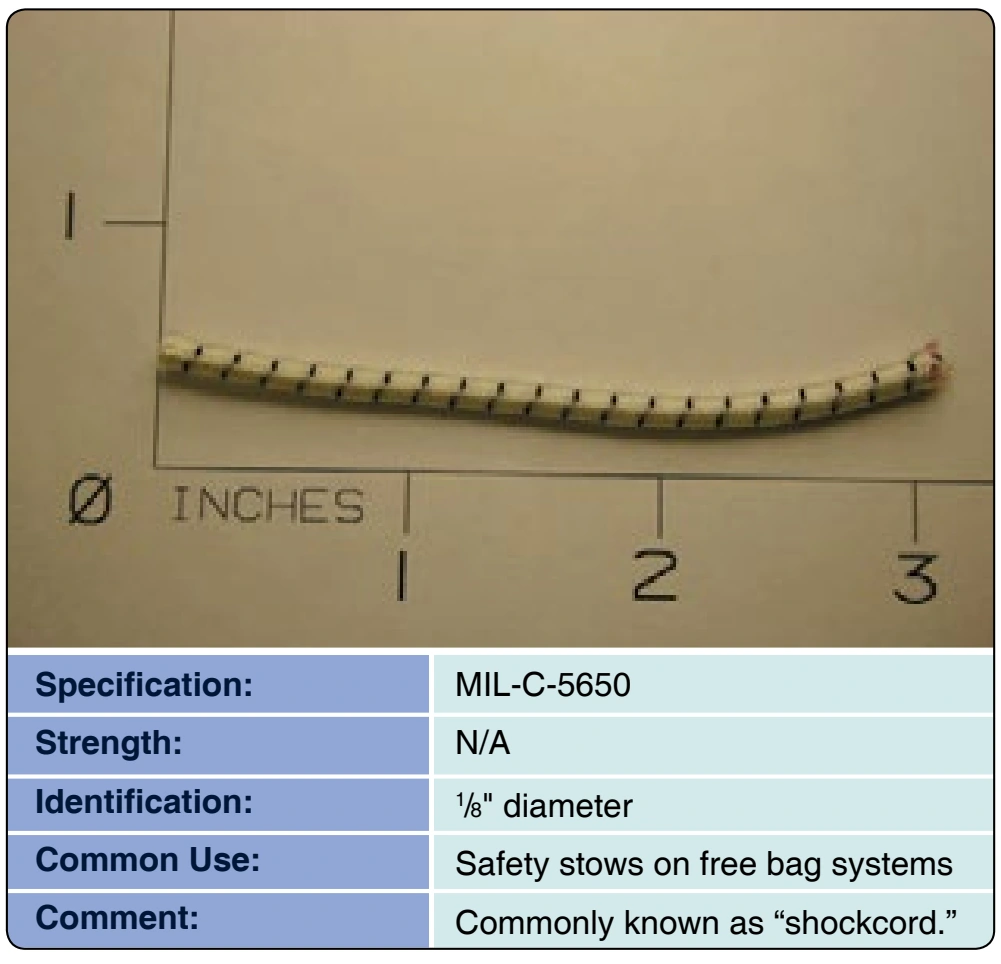

Figure 3-43. Cord, elastic.
Figure 3-43. Cord, elastic.

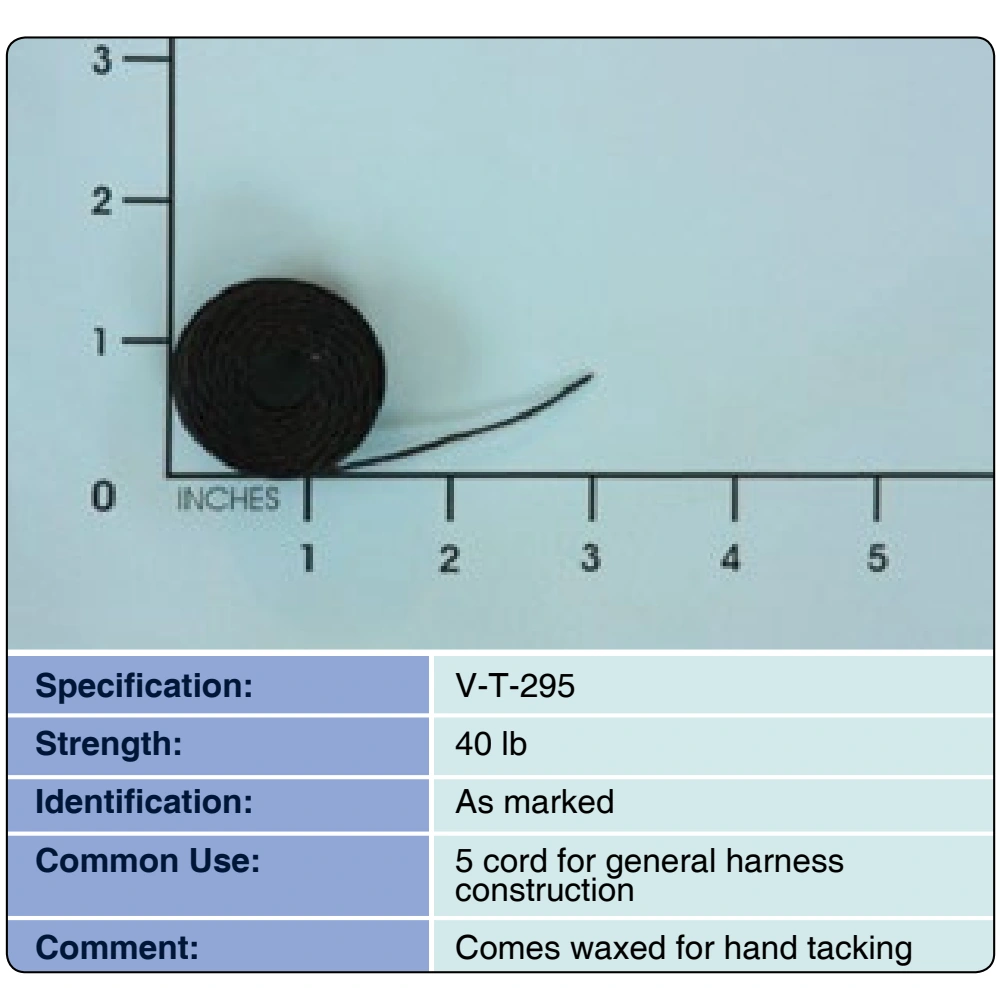

Figure 3-44. Cord, nylon, 5 cord Belbob.
Figure 3-44. Cord, nylon, 5 cord Belbob.

All specification hardware has the appropriate number stamped or marked on it. The MS prefix is on those with the MIL-SPEC certification. All with the newer PIA certification have the mark with the PS (Parachute Standards) prefix. [Figure 3-64] Most of the current hardware has the mark with the MS prefix. As current stocks deplete, the mark on new production is with the PS prefix.

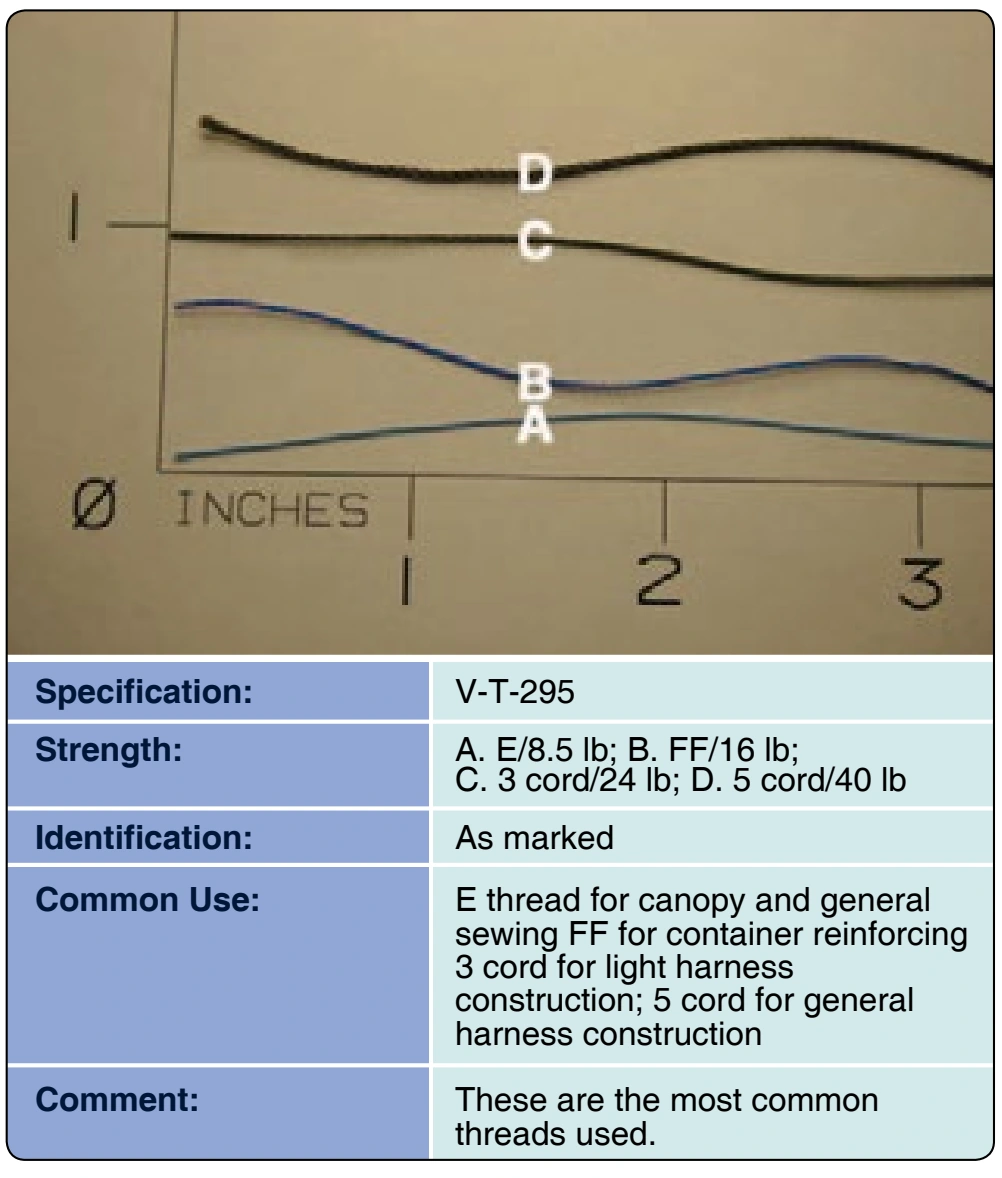

Figure 3-45. Thread, nylon.
Figure 3-45. Thread, nylon.

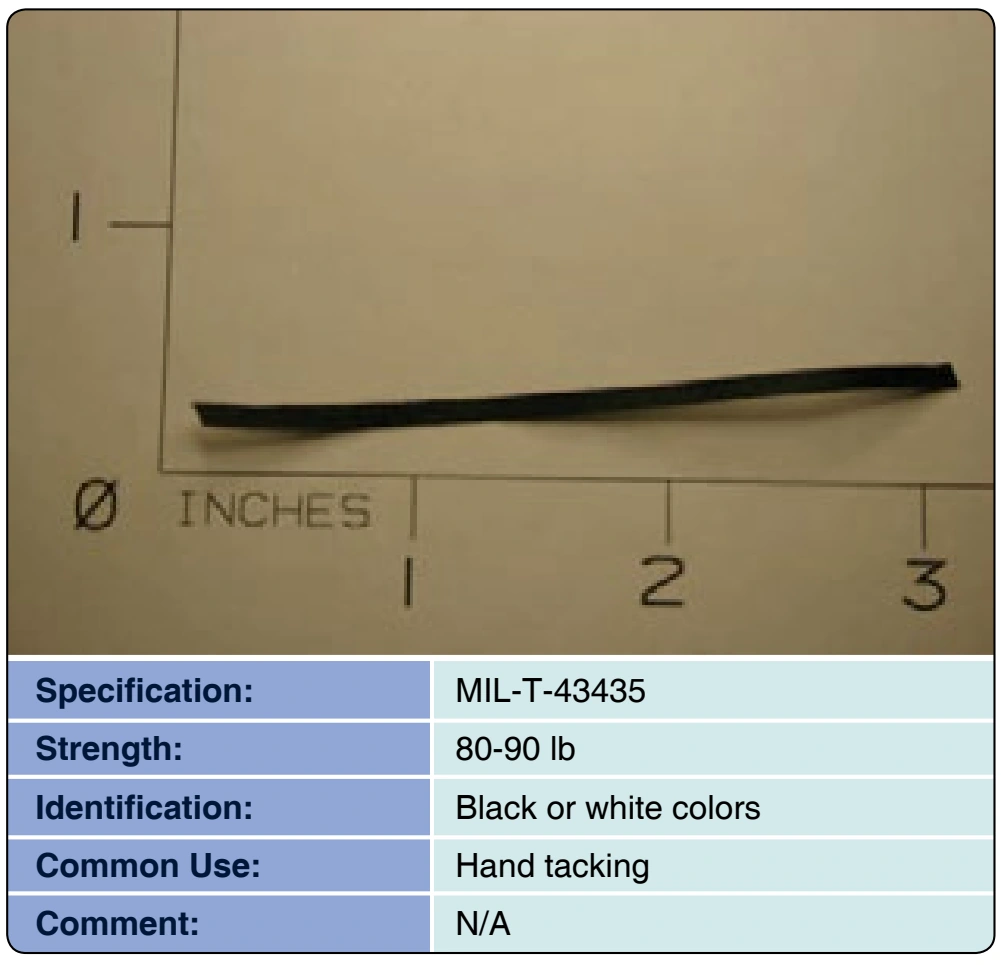

Figure 3-47. Thread, nylon, flat braided (supertack).
Figure 3-47. Thread, nylon, flat braided (supertack).

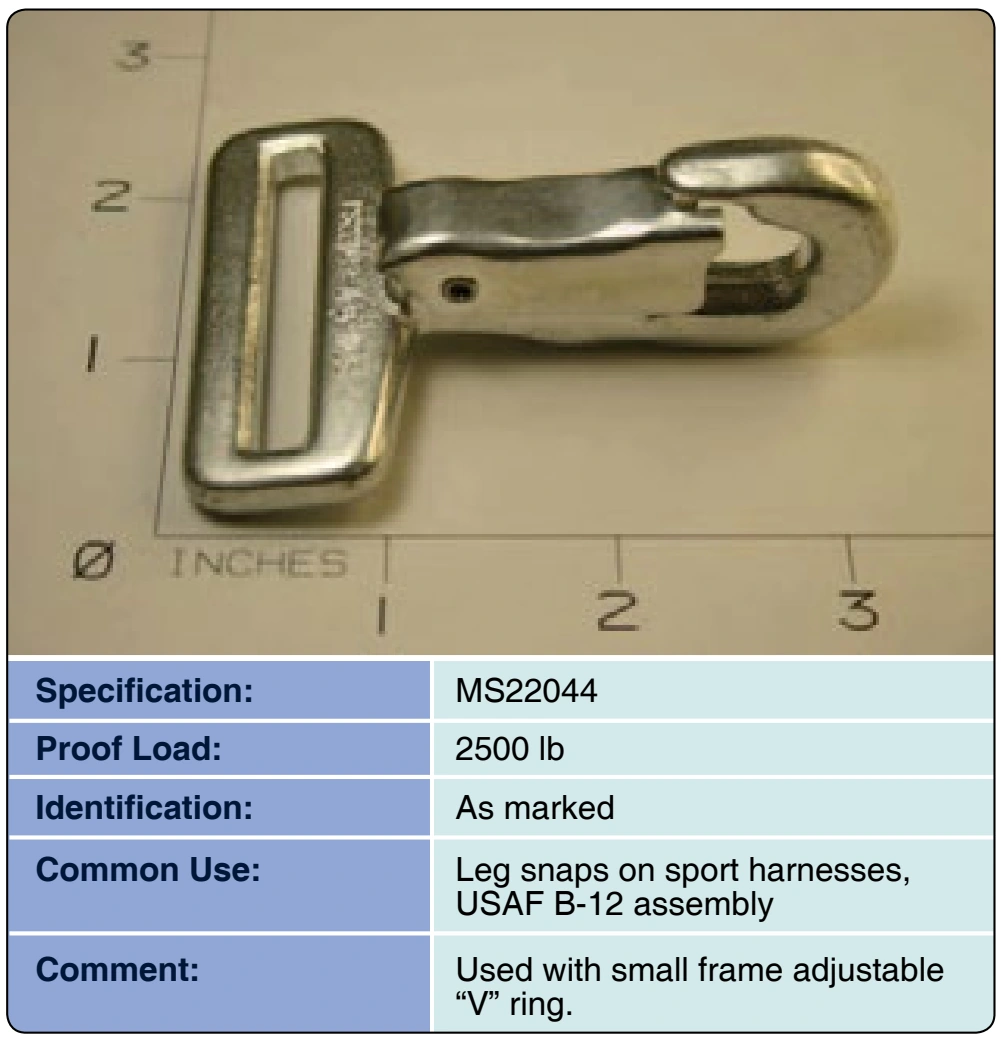

Figure 3-48. Snap, B-12.
Figure 3-48. Snap, B-12.

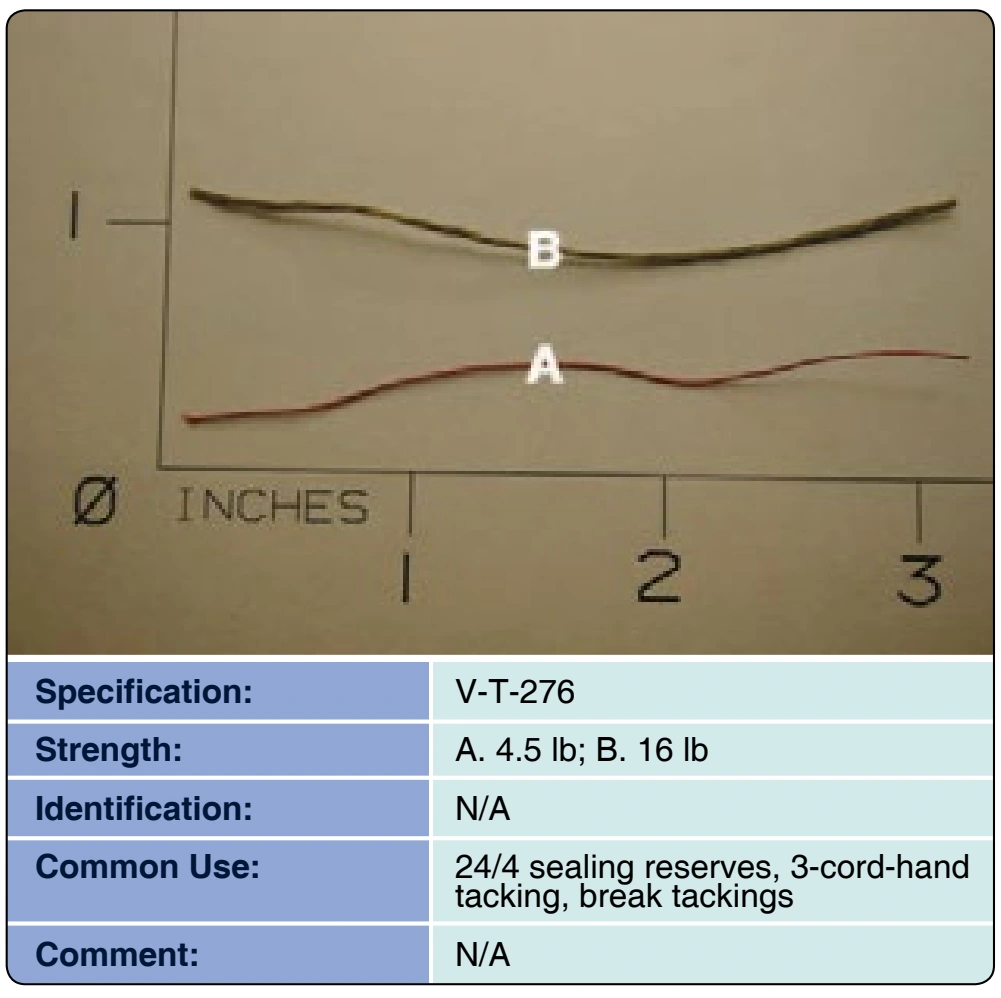

Figure 3-46. A. Thread, cotton, 24/4; B. Thread, cotton, 3-cord.
Figure 3-46. A. Thread, cotton, 24/4; B. Thread, cotton, 3-cord.

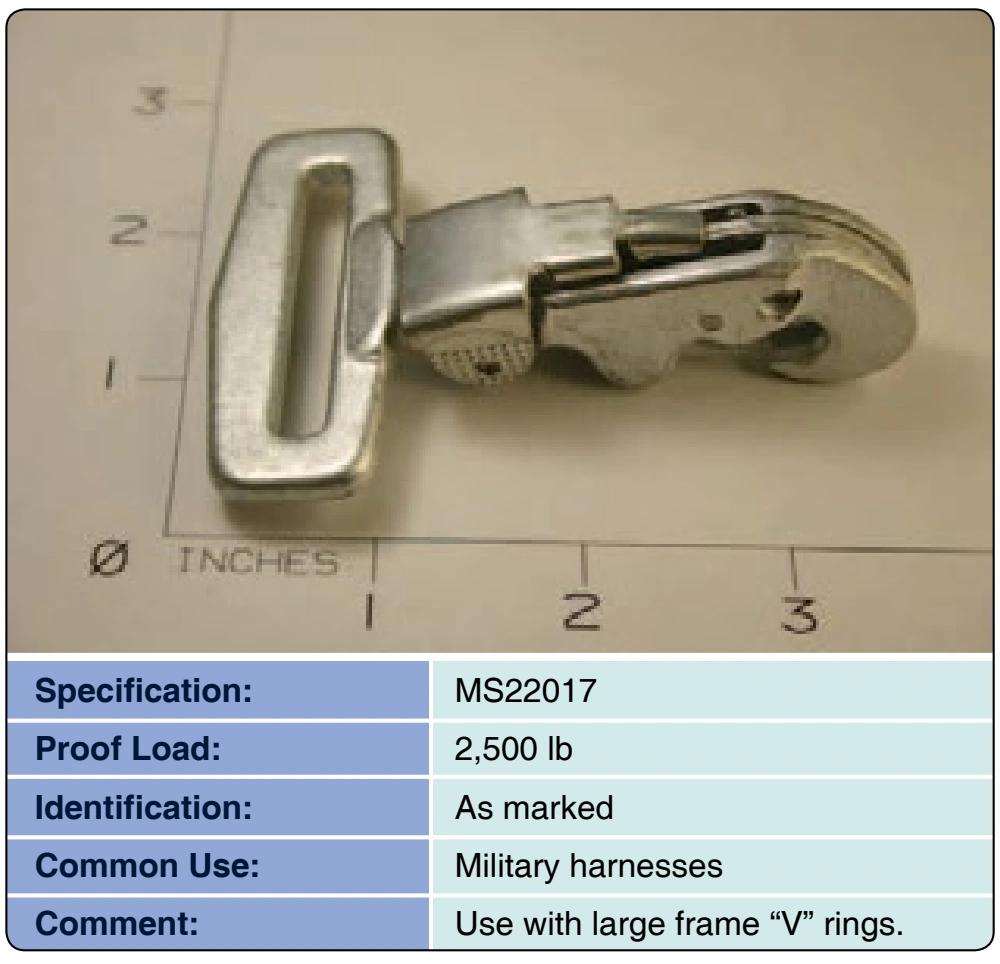

Figure 3-49. Ejector snap, non-adjustable.
Figure 3-49. Ejector snap, non-adjustable.

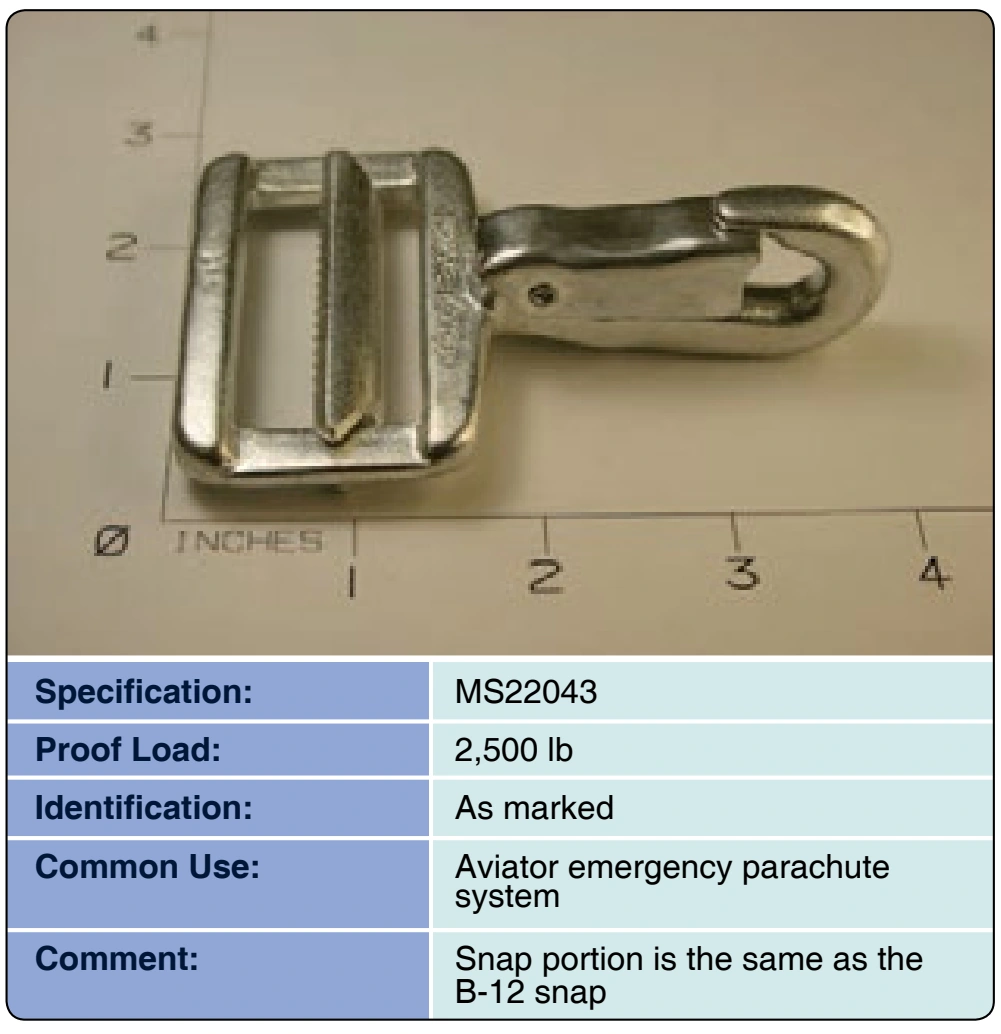

Figure 3-50. Snap, quick fit.
Figure 3-50. Snap, quick fit.

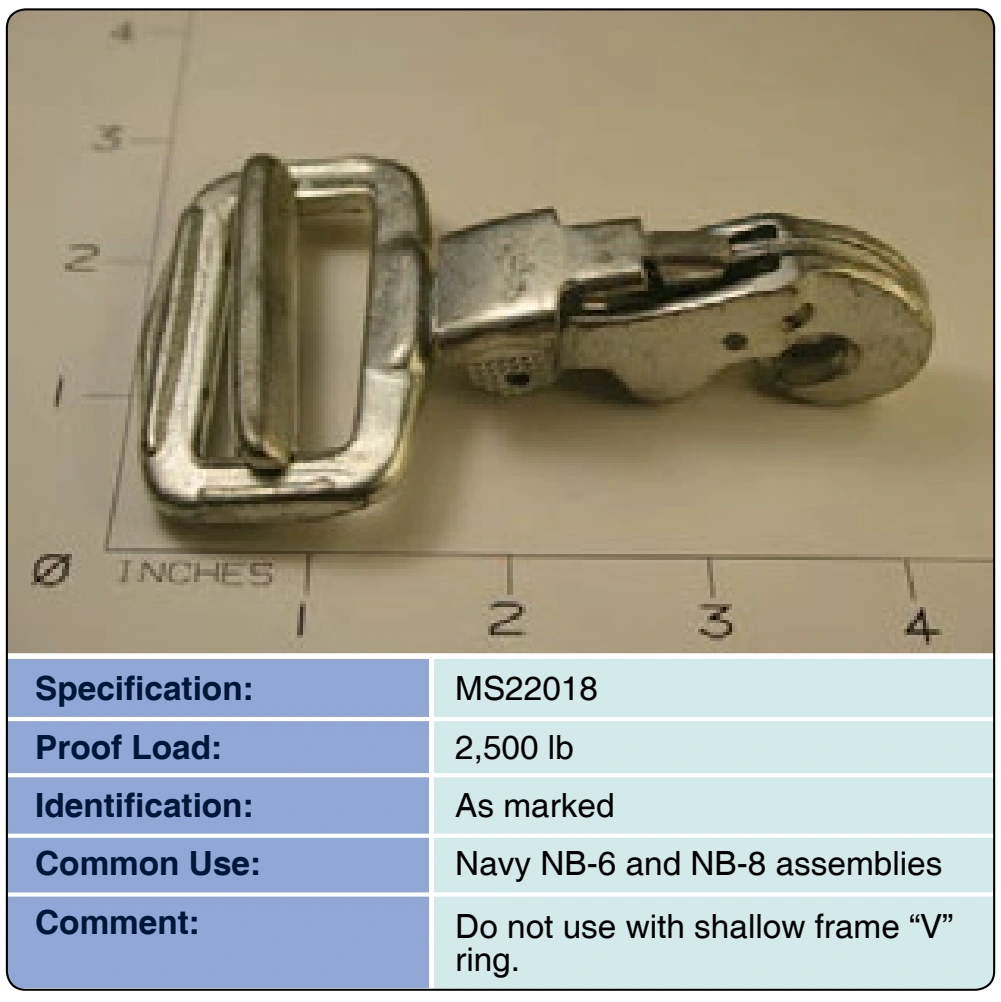

Figure 3-51. Snap, quick fit ejector.
Figure 3-51. Snap, quick fit ejector.

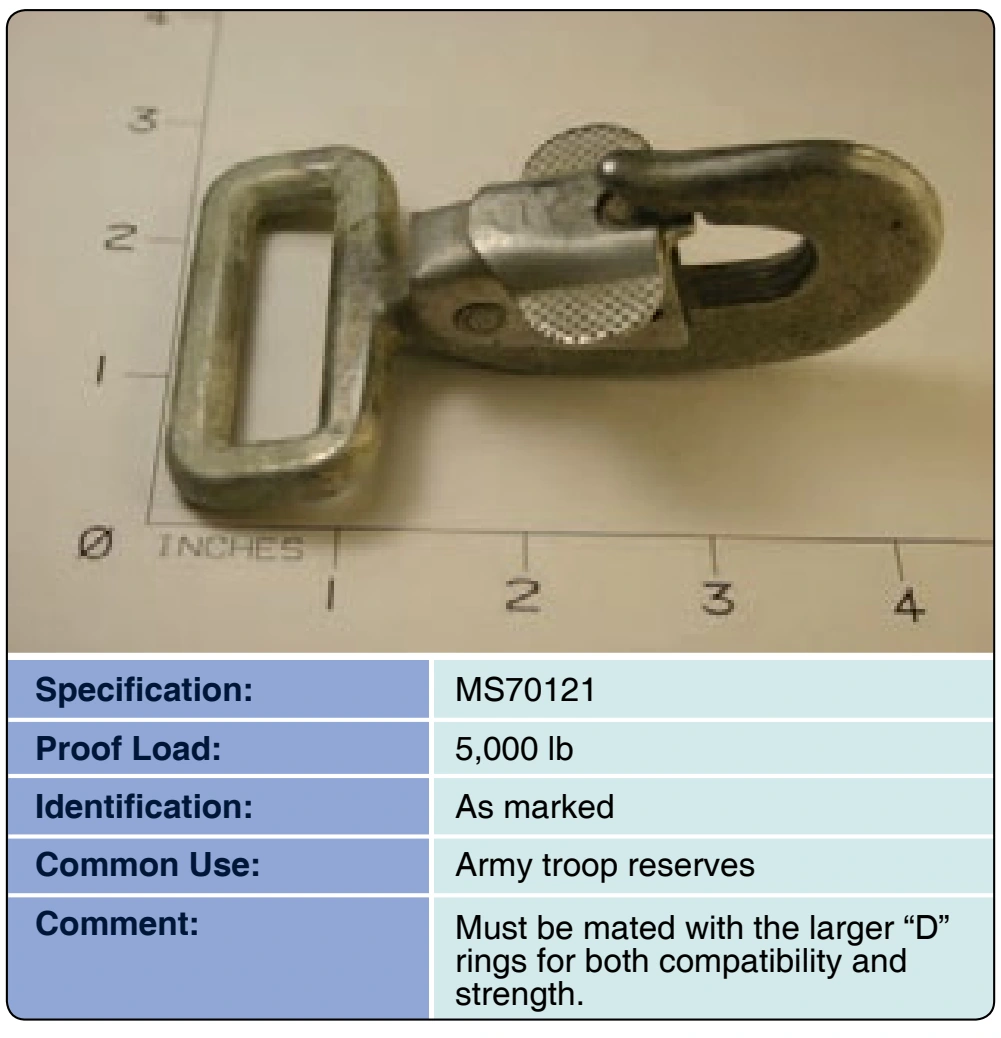

Figure 3-52. Snap, parachute chest-type pack.
Figure 3-52. Snap, parachute chest-type pack.

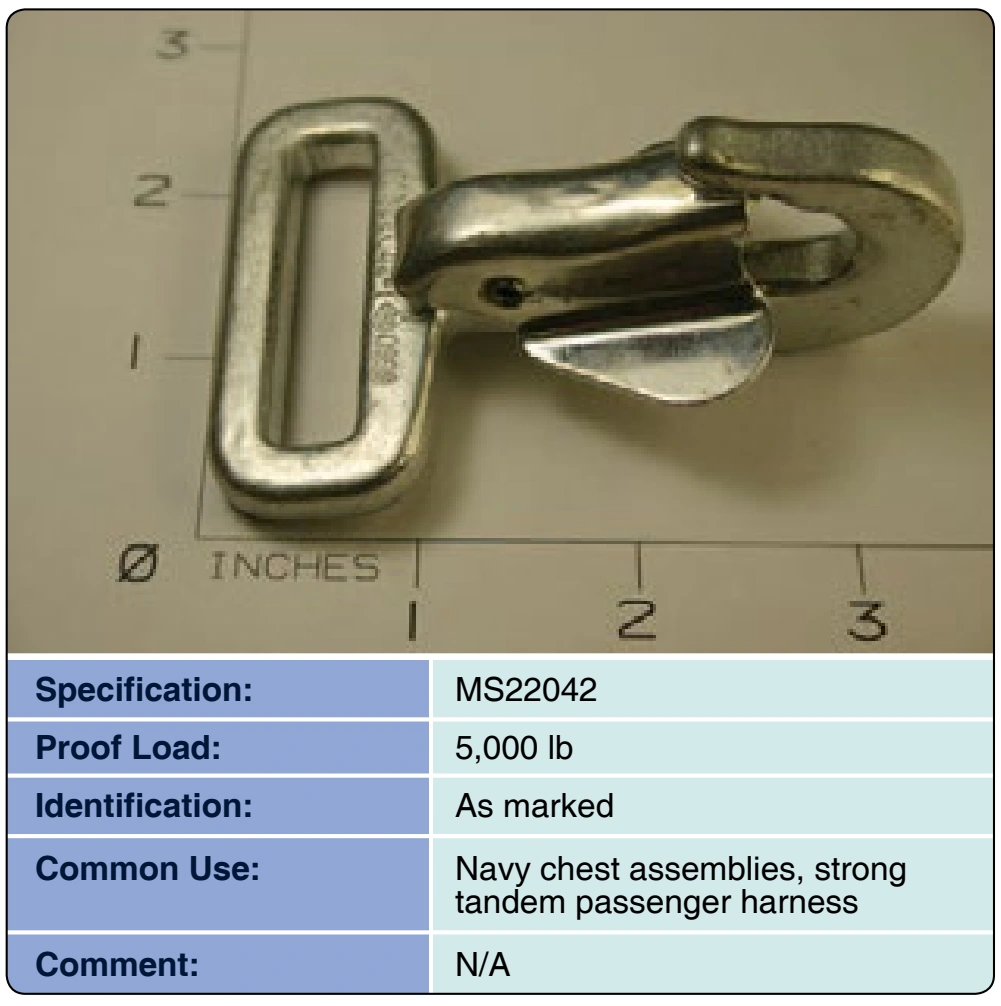

Figure 3-53. Snap, quick connector, parachute harness.
Figure 3-53. Snap, quick connector, parachute harness.

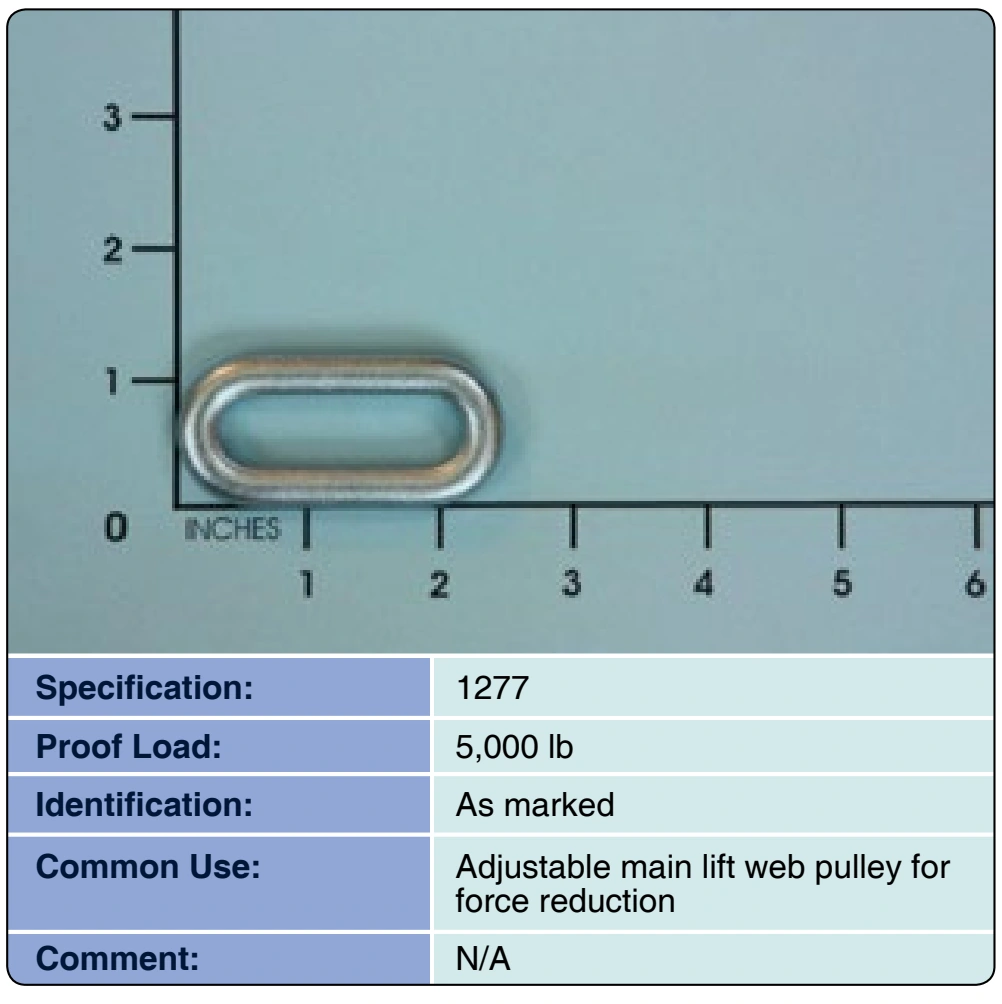

Figure 3-55. Adjuster, oval ring.
Figure 3-55. Adjuster, oval ring.

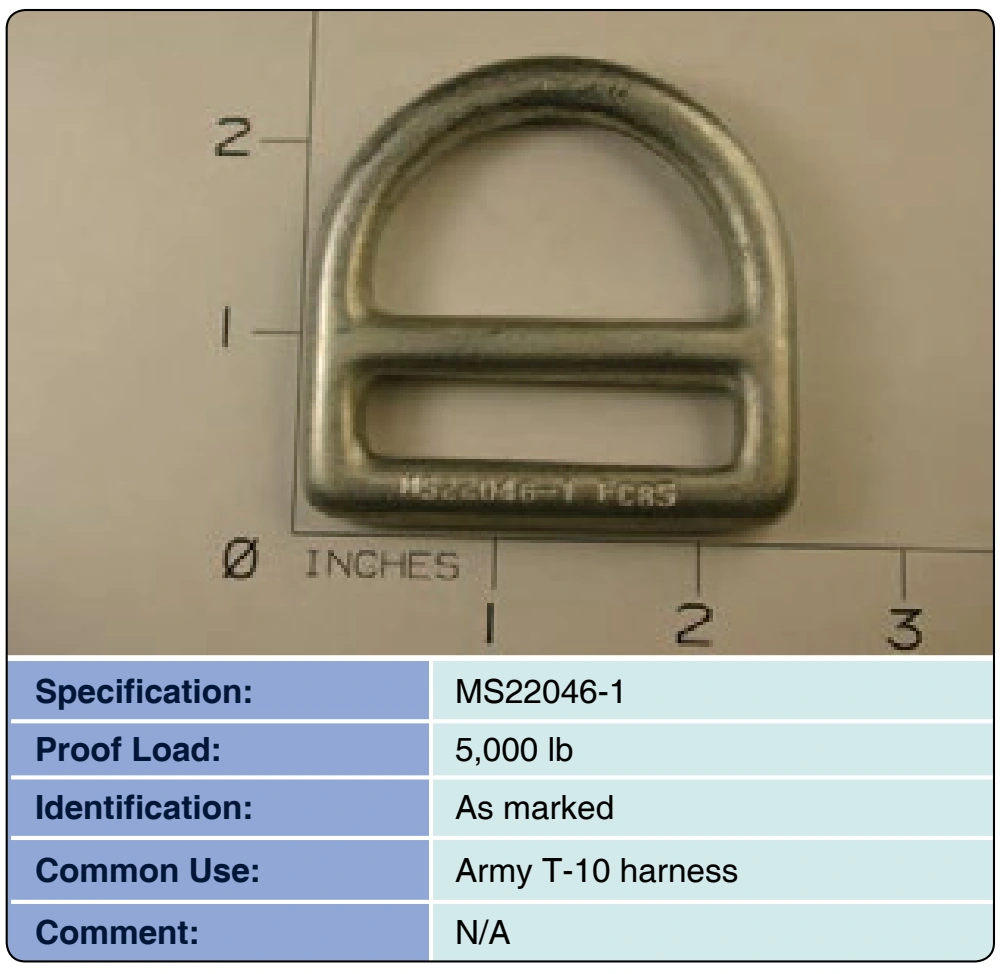

Figure 3-54. “D” ring harness, old style.
Figure 3-54. “D” ring harness, old style.

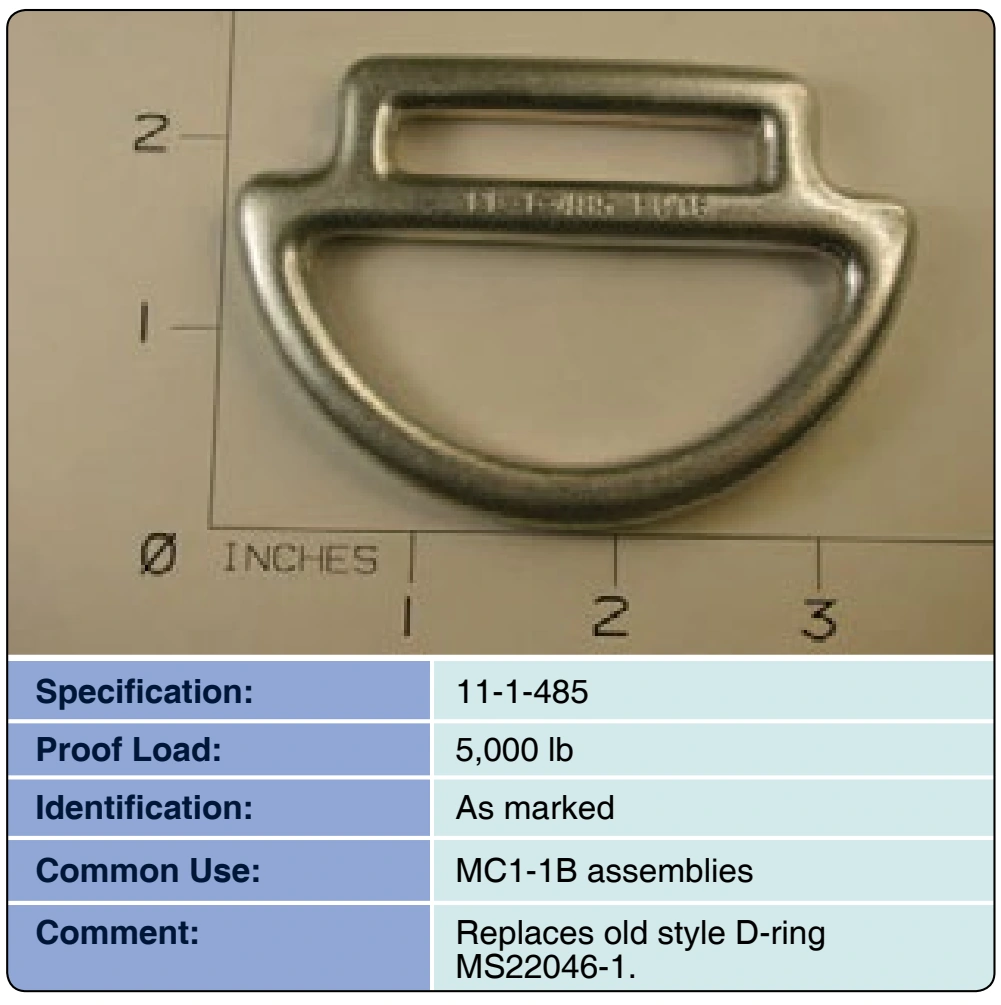

Figure 3-56. “D” ring harness, new style.
Figure 3-56. “D” ring harness, new style.

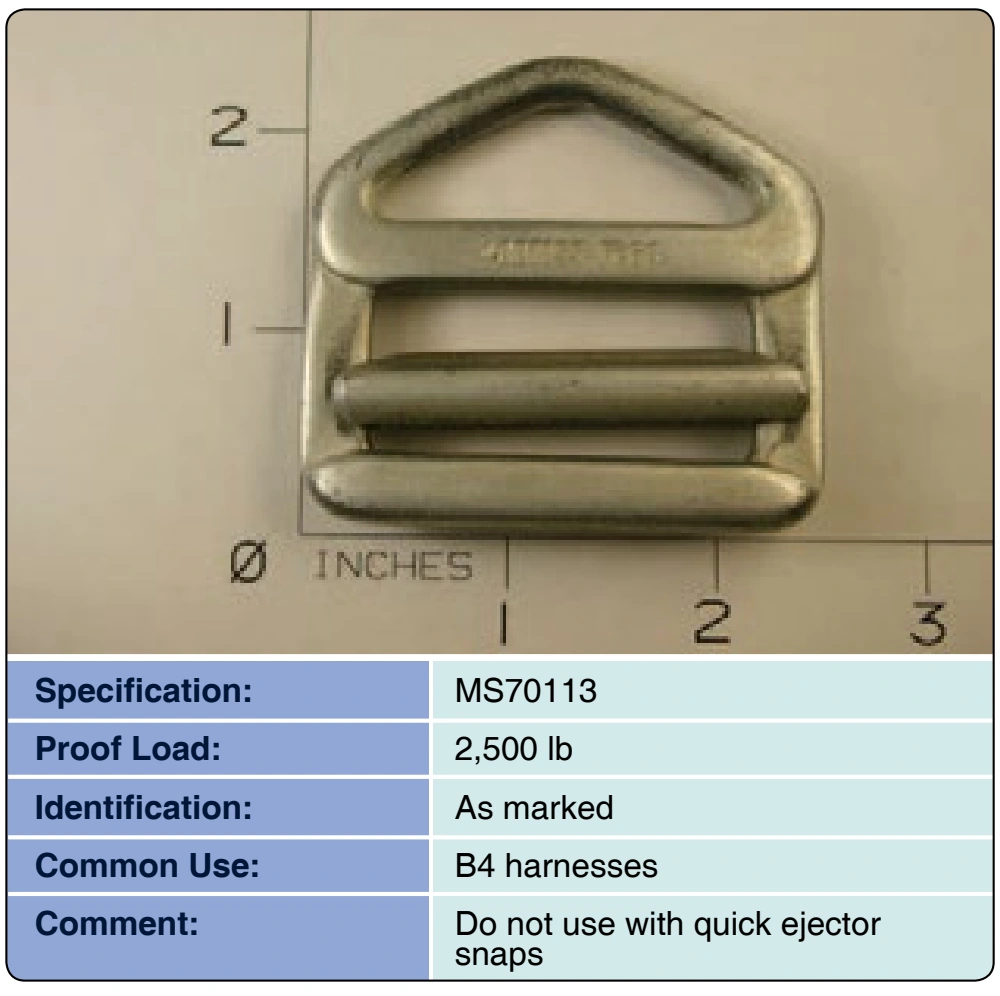

Figure 3-57. “V” ring, quick fit, shallow frame.
Figure 3-57. “V” ring, quick fit, shallow frame.

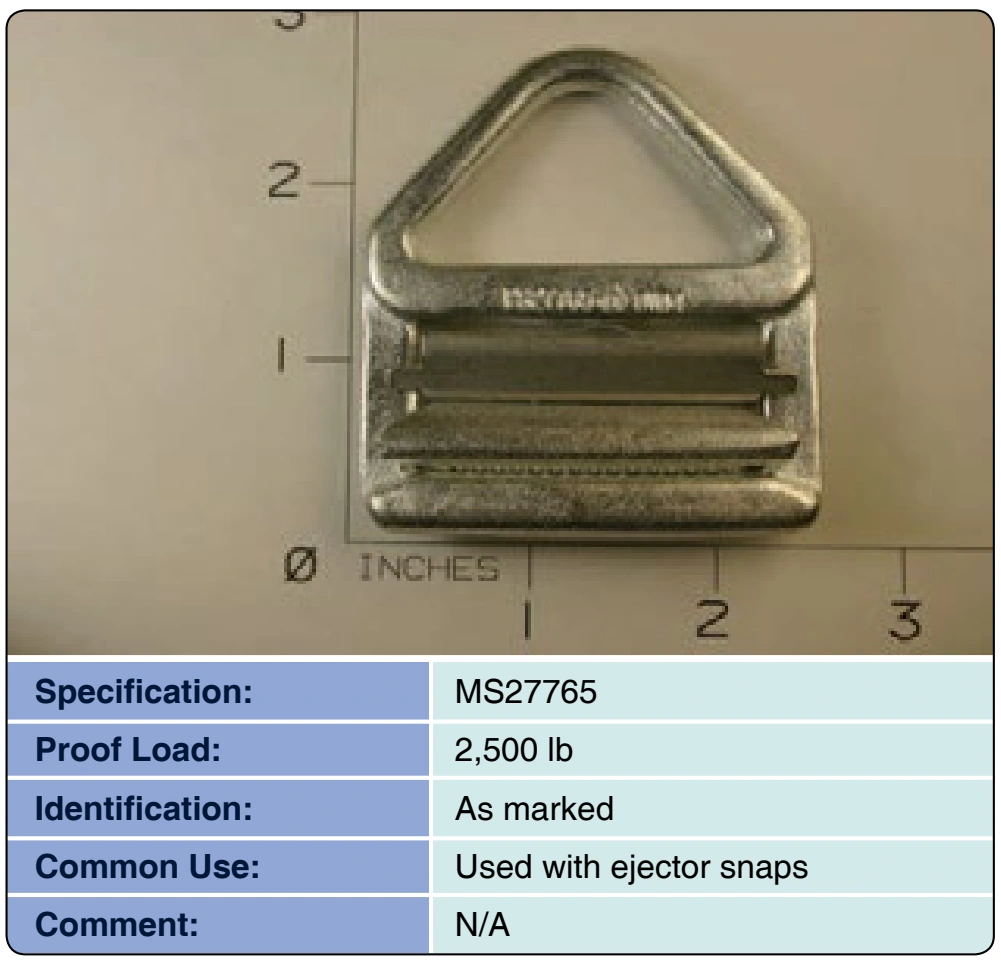

Figure 3-58. “V” ring, quick fit, large frame.
Figure 3-58. “V” ring, quick fit, large frame.

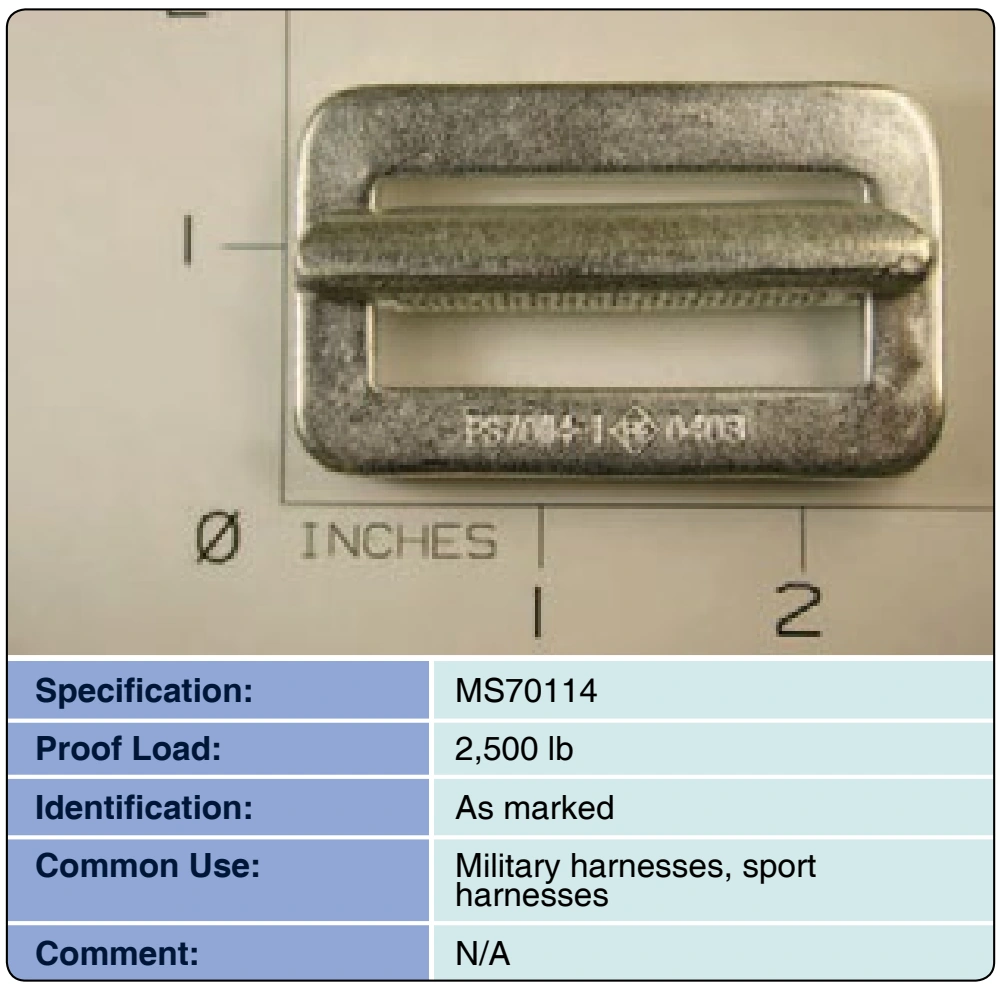

Figure 3-59. Adapter, quick fit, small frame.
Figure 3-59. Adapter, quick fit, small frame.

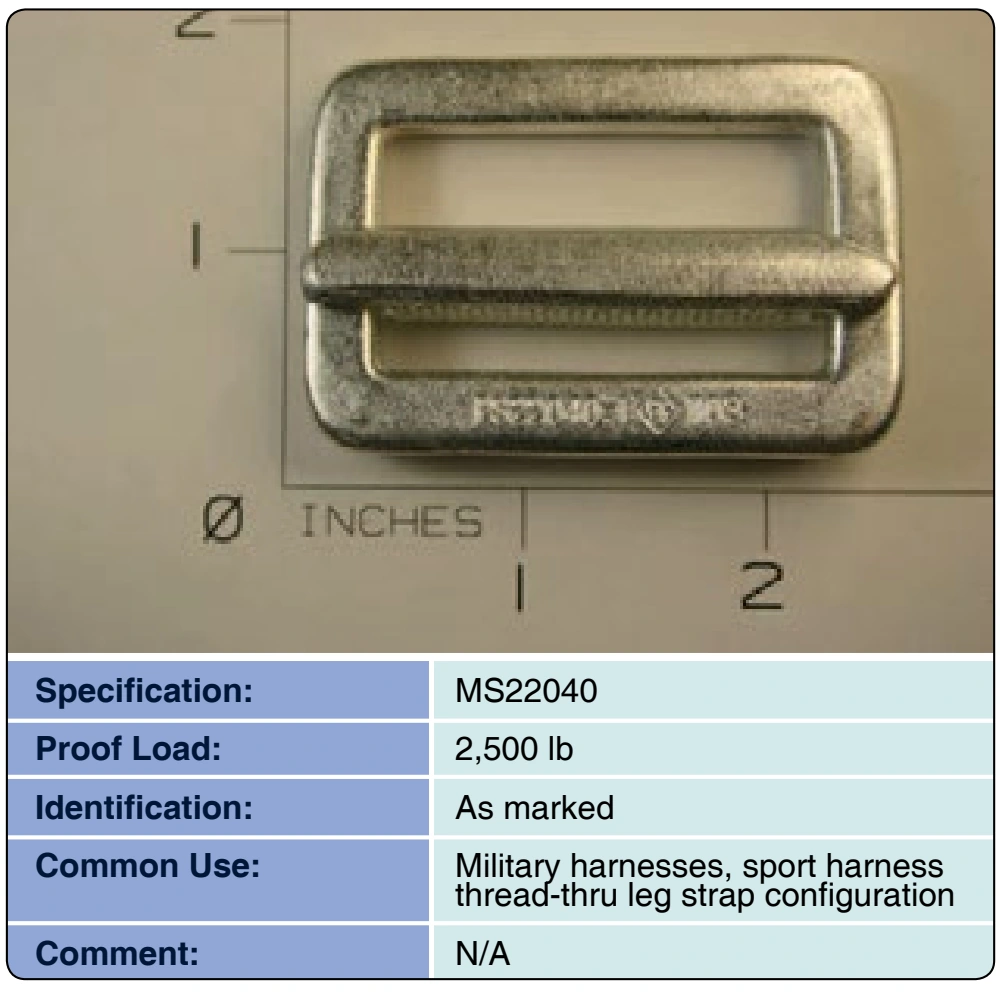

Figure 3-60. Adapter, quick fit, large frame.
Figure 3-60. Adapter, quick fit, large frame.

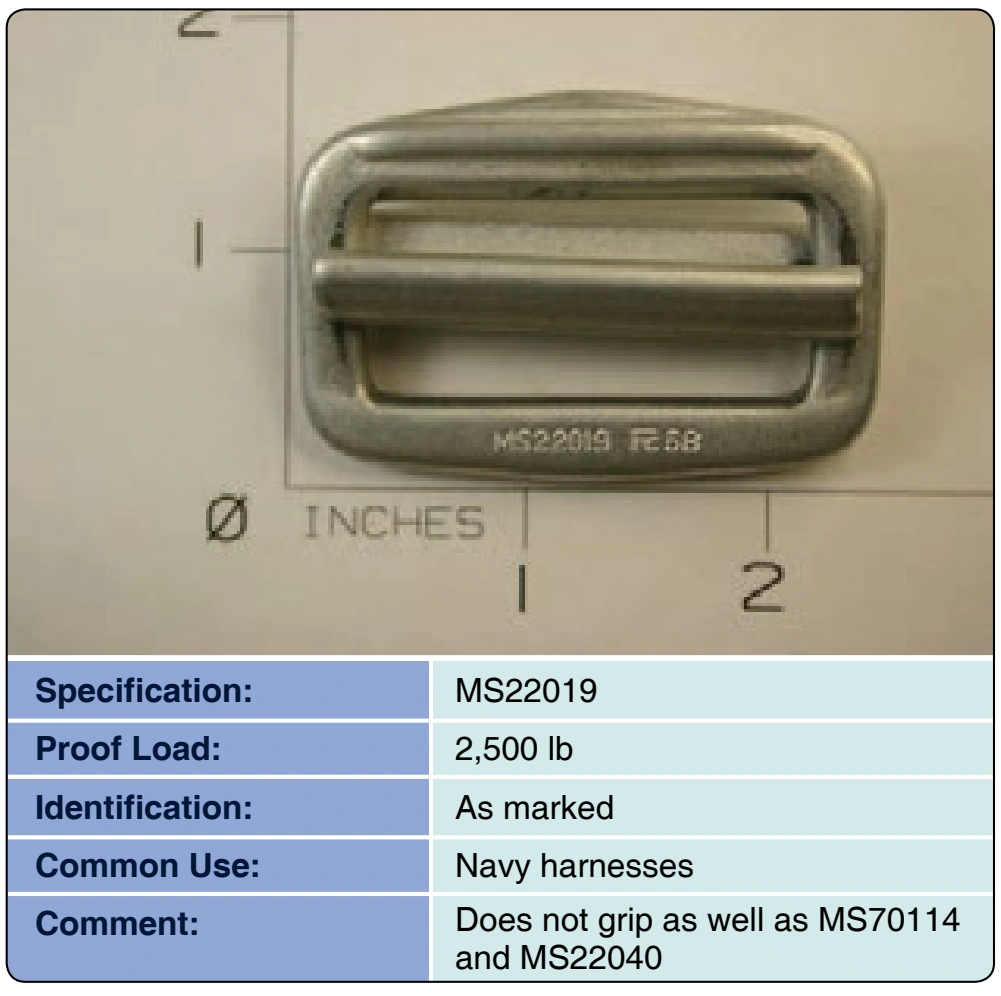

Figure 3-61. Adapter, quick fit, reversible.
Figure 3-61. Adapter, quick fit, reversible.
